:: IDS-3100
Different skin conditions can be checked by appropriate
Light options & Magnification.
UV Light Skin Examination [Wood's Light]

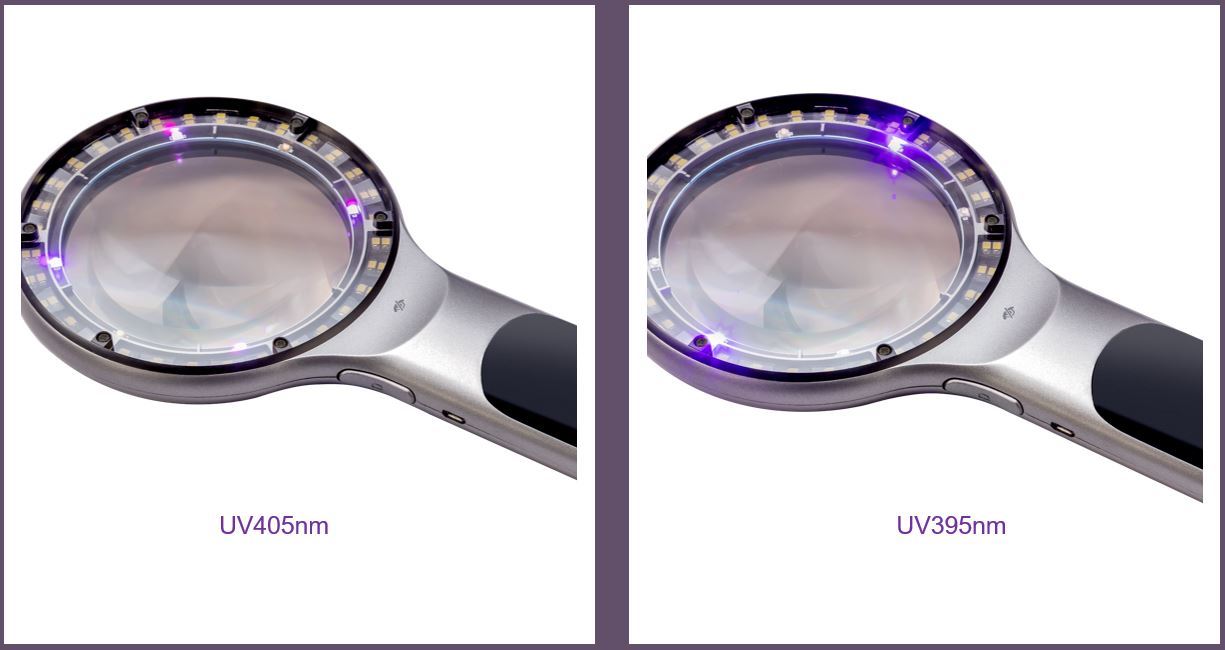

IDS-3100 has 3 options in UV light.
- a. 4 x 405nm UV LED
- b. 2 x 395nm UV LED
- c. [2 x 395nm] + [4 x 405nm] UV LED
UV Light skin examination is used for Detection of
- Bacterial or fungal skin infections,
- Pigmented & hypo-pigmented skin lesions incl. melisma and vitiligo
- Determining the location of the melanin pigment (epidermis & dermis)
IDS-3100 is a new concept of UV Light Magnifier that compensates the inconvenience of conventional wood's lamp. Moreover, its high power UV LED and specially designed lens coating present excellent UV fluorescence image.

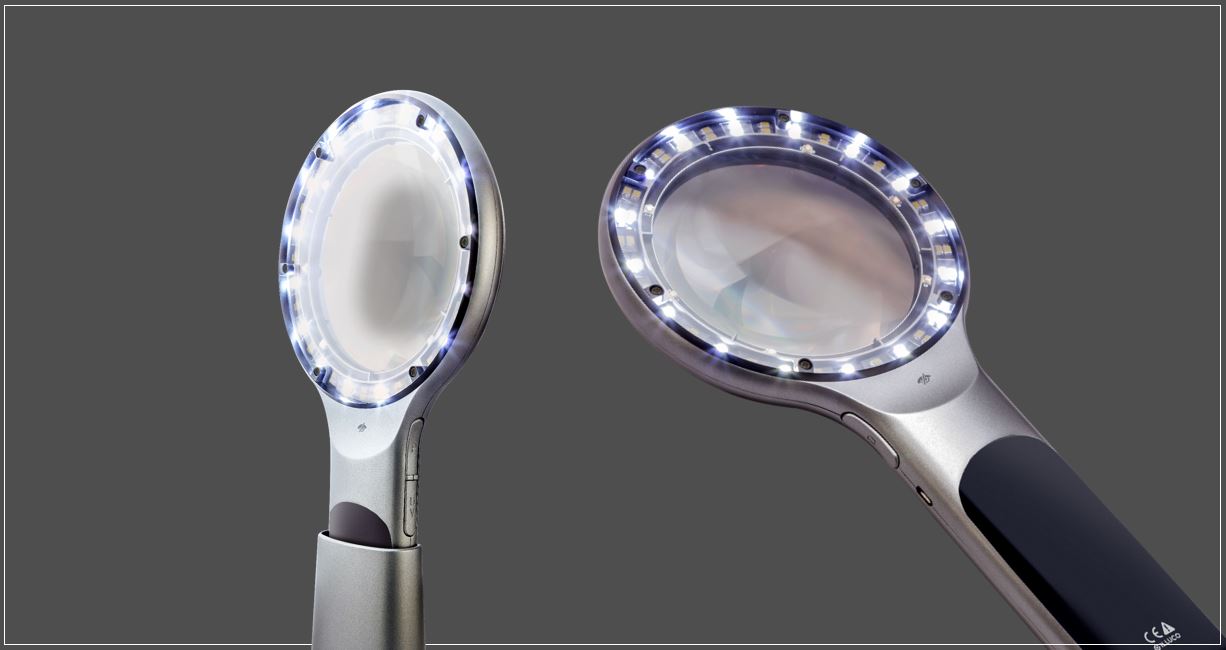

White Light Skin Examination
IDS-3100 has 2 options in White light.
- a. Cross polarized light (polarized light)
- b. Parallel polarized light (non-polarized light)
Cross polarized light skin examination is used for detection of
- Actinic keratosis
- Non-melanoma skin cancers
- Melanoma
by reducing the reflection of the skin surface. It allows a quick examination of pigmented skin lesions prior to precise analysis using a dermatoscope.
Presents excellent visual acuity
IDS-3100 [MAGNUM UV+] is designed to perform its designated functions with high level quality.

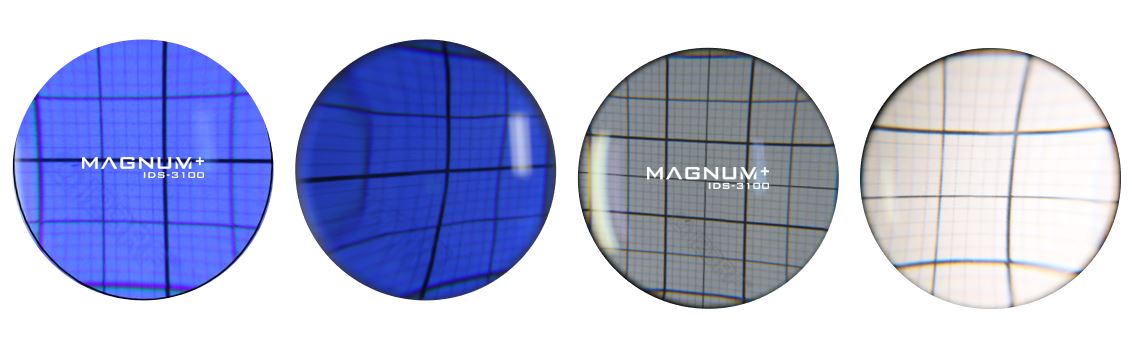

- Specially designed aspherical lens reduces spherical and optical aberrations and presents clear image with min. distortion
- In addition, specially disigned lens coatings make the object seen through the lens look more accurate and clear.

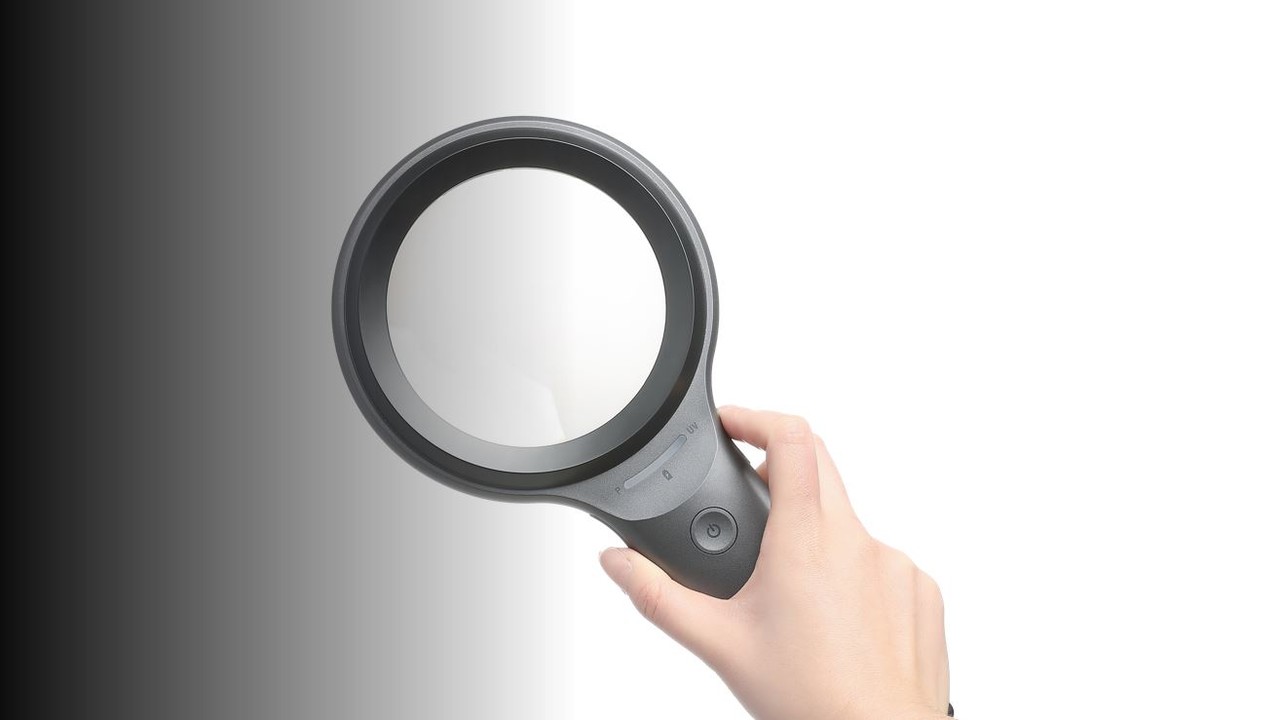

Designed with your comfort in mind
- 100MM large field of view
- Effective focal length and working distance working distance (eye to lens): 90 ~ 150mm focal length (lens to skin): 65 ~ 150mm The effective distance between "eye to lens" and "lens to skin" make your work more easy and comfortable.
- 3 level of brightness
- Automatic shutdown after 5 min.
| Technical Specifications | |
|---|---|
| Polarization Mode | Parallel & Cross |
| UV Mode | 395nm & 405nm |
| Magnification | 2.5 x |
| Field of View | 100 mm |
| Weight | 370 g |
| Lens | Aspherical lens |
| Examination | Binocular Examination |
| Resolution | 23 LP |
| Coating | AR Coating |
| Distortion | Under 3% |
| LED | 64 x White LEDs / 6 x UV LEDs |
| Intensity of Illuminaton | SMD type 3,500 ~ 4,000 Lux |
| Brightness Control | 3 leves |
| LED life | 100,000 hours |
| Power Supply | Rechargeable / 3,400mAh |
| Sleep Mode | 5 mins after not in use |
| Charging Method | Micro USB 5 pin or Charging Cradle |
| Charging Time | 8.5 hours |
| Continuous Duty Time | 2.5 ~ 4 hours |
Remarkable Features
- 2.5 x Magnification
- 100mm large field of view.
- 300g light weight: easy to handle.
- Nano Hybrid Hard Coating enhances UV transmittance and lens protection, and prevent contamination and scratches.
- Aspherical lens minimizes distortion and improves visual acuity..
- Automatic shut down after 5 minutes idle run

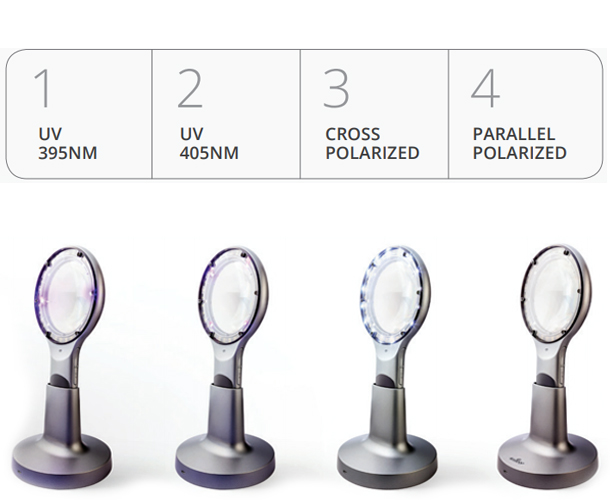

- Easy store and charging (charging station)
Applications
- Dermatology
- Veterinary Medicine
- General Medicine
- Esthetics
- Vitiligo
- Milium
- Acne pigmentation
- Sebum
- Actinic Keratosis, Squamous cell carcinoma (PDD)
- Pityriasis versicolor
- Capillary
- Pigmented & Hypo-pigmented skin lesions
- Cutaneous fungal, Bacterial infection
- Skin inflammation
